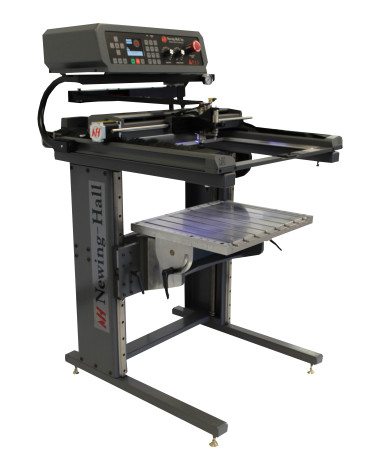

Model 460 Engraving Machine Capabilities

The HP-460 engraving machine with its high-rise industrial base offers work-holding versatility and stability that is unmatched in the industry. The rugged T-slot table can be raised, lowered and tilted up to 45 degrees with ease, smoothness and precision that will impress those with an eye for well designed machine shop equipment.

One or more specialized work-holding fixtures can be fitted to the table. We now offer the only commercially available dual cylindrical option. This feature is being used with exceptional quality on products as diverse as musical instruments, writing utensils and bowling balls.

Model 460

Specifications

  • Engraving Area: 300 sq. in.
  • X-Axis Travel: 20″
  • Y-Axis Travel: 15″
  • Work Holding Capacity: X-Axis 21″ & Y-Axis Unlimited
  • Dimensions: 32″ W x 31″ D x 49″ H
  • Weight: 372lb. Net / 425lb. Gross

Table Design

  • Open-Bed/Pass Through Design
  • Datum Detectors
  • Type: T-Slot & Dynagrip
  • Options: Table Plates

Standard/Optional Features on All Floor-Standing Models

We provide our customers with amazing standard engraving machines with the ability to upgrade with optional features. These features are available for all our floor-standing models. We understand that every clients needs are different and that is why we provide the very best range of products to our clients. Looking to upgrade your current machine? No problem, Newing-Hall is proud to help our clients get the most out of their engraving machines.

Spindle: 11/64" Rotary

  • Options: 1/4″, Collet, Diamond Drag
  • Actuation: Adjustable Pneumatic (Stepper Optional)
  • Vertical Travel: 1″
  • Clearance: 1.125″ (up to 12″ Optional)
  • Speed: 0-24,000 RPM/Variable
  • Motor: 1/5 hp DC Permanent Magnet
  • Bearings: Three Class 7
  • Multiple Spindles: Available

Powerbase & Vise: Standard

  • Holding Capacity: Up to 16″ L x 12″ H
  • Vise Adjustment: Up to 65° Rotation, 35° Tilt

Cylindrical: Standard

  • Holding Capacity: .25″ to 10.5″ Dia. x 16″ L
  • Concentricity: .002″

Recommended maximum engraving diameter 8.5 inches

Available Accessories for Model 460

Whether you are looking for replacement parts or just ready to upgrade your system, we have the accessories that can keep your engraving machine working at peak performance.

Air Compressor

Air Compressor

Chip Removal

Quatro Chip Removal System

3 Jaw Chuck

3 Jaw Chuck

Industrial Vise

Industrial Vise
