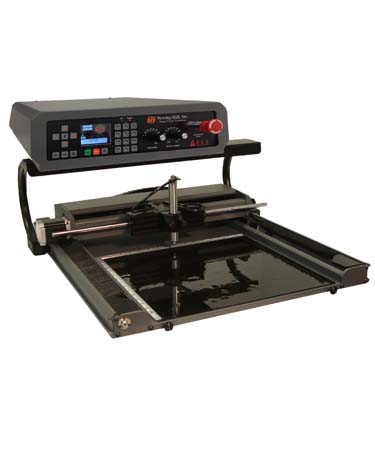

Model 240DS Engraving Machine Capabilities

When you are in the market for an entry-level engraving machine, check out the HP-240DS. With the largest entry level engraving area and rugged construction, we challenge you to find a better engraving machine for the money. Like all Newing-Hall engraving machines, it is built to last, and completely upgradeable.

The APEX HP-240DS gives you more than any other entry level engraver and the ability to grow with your business. We have designed and priced the HP-240DS for the entry level market, but have included the unique capability to add all of the additional features that are available on our best selling engraving machine, the HP-350.

Model 240DS

Specifications

  • Engraving Area: 247.5 sq. in.
  • X-Axis Travel: 16.5″
  • Y-Axis Travel: 15″
  • Work Holding Capacity: X-Axis 17″ & Y-Axis Unlimited
  • Dimensions: 26″ W x 31″ D x 16″ H
  • Weight: 68lb. Net / 81lb. Gross

Table Design

  • Open-Bed/Pass Through Design
  • Type: Dynagrip
  • Options: Datum Detectors
  • Diamond Spindle Comes Standard

Standard/Optional Features on All Flatbed Models

We provide our customers with amazing standard engraving machines with the ability to upgrade with optional features. These features are available for all our flatbed models. We understand that every clients needs are different and that is why we provide the very best range of products to our clients. Looking to upgrade your current machine? No problem, Newing-Hall is proud to help our clients get the most out of their engraving machines.

Spindle: Diamond

  • Options: 11/64″ Collet
  • Actuation: Adjustable Pneumatic (Stepper Optional)
  • Vertical Travel: 1″
  • Clearance: 1.125″ (up to 12″ Optional)
  • Multiple Spindles: Available

Powerbase & Vise: Optional

  • Holding Capacity: Up to 16″ L x 12″ H
  • Vise Adjustment: Up to 65° Rotation, 35° Tilt

Cylindrical: Optional

  • Holding Capacity: .25″ to 10.5″ Dia. x 16″ L
  • Concentricity: .002″

Available Accessories for the 240DS

Whether you are looking for replacement parts or just ready to upgrade your system, we have the accessories that can keep your engraving machine working at peak performance.

Table Vise

Table Vise

Rotary Drive

Rotary Drive

Air Compressor

Air Compressor

11/64" Spindle

11.64 Rotary
