Flatbed & Floor-Standing Engraving Machines
Purchasing engraving machines may seem like a daunting task. At Newing-Hall, Inc., we make the process simple and easy. Whether you are considering a new engraving machine or upgrading, it only makes sense to choose a manufacturer that will work with you to keep your business operating at peak efficiency.
We develop, design and manufacture the world’s most advanced engraving machines. With thousands of our units in trouble-free operation around the world, Newing-Hall has earned the reputation of offering the highest quality engraving systems. Our friendly and knowledgeable staff can help you find the very best options for your company.
Feel free to click any of the models on the left and explore the benefits and specifications of our engraving machines.
Engraving Machines
Outstanding Capabilities
One engraving machine from Newing-Hall, Inc., can do it all. From standard to irregular shaped items, our machines are designed to perform. Here are just some of the uses for our engraving systems:
- Metal
- Glass
- Jewelry
- Medallions
- Name Plates
- Plastic
- Acrylic
- ADA Signage
- Serial Tags
- Control Panels
Industries We Serve
- Automotive
- Hospitals
- Aerospace
- Musical
- Jewelry
- Nuclear Power
- Transportation
- Advertisement
- Universities
- Manufacturing
- Military
- Casinos

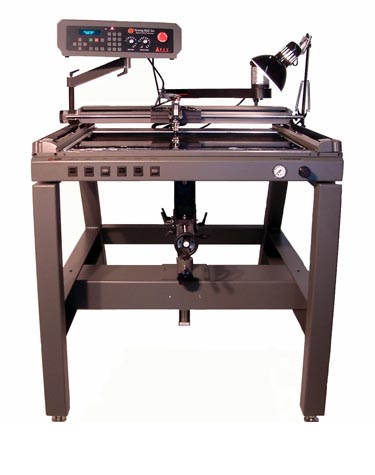

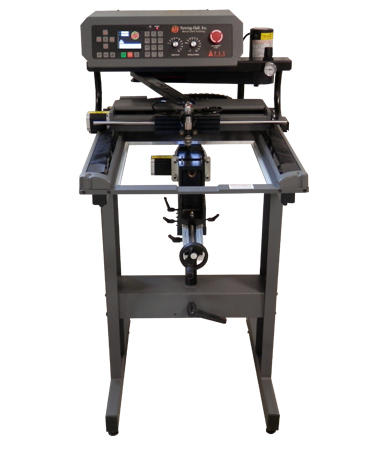

| Machine Features | 240DS | 300 | 350 | 400 | 450 | 460 | 600 | 650 |
|---|---|---|---|---|---|---|---|---|
| Engraving Area | 247.5 Sq. In. | 247.5 Sq. In. | 247.5 Sq. In. | 300 Sq. In. | 300 Sq. In. | 300 Sq. In. | 720 Sq. In. | 720 Sq. In. |
| X-Axis Travel | 16.5" | 16.5" | 16.5" | 20" | 20" | 20" | 30" | 30" |
| Y-Axis Travel | 15" | 15" | 15" | 15" | 15" | 15" | 24" | 24" |
| Dimensions (WxDxH) | 28" x 31" x 16" | 28" x 31" x 16" | 28" x 31" x 49" | 32" x 31" x 26" | 32" x 31" x 49" | 32" x 31" x 62" | 42" x 41" x 26" | 42" x 41" x 62" |
| Weight | 68 lb. | 68 lb. | 166 lb. | 72 lb. | 180 lb. | 372 lb. | 240 lb. | 415 lb. |
| X-Axis | 17" | 17" | 17" | 21" | 21" | 21" | 31.75" | 31.75" |
| Y-Axis | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ | ∞ |
| Open Bed, Pass Through | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Dynagrip Table | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| T-Slot | ○ | ○ | ○ | ○ | ○ | ✓ | ○ | ○ |
| Clamping Table Plates | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Diamond | ✓ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 11/64" | ○ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Collet | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Stepper | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Multiple Spindle Capability | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Variable Speed | ○ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Clearance 1.125" - 12" | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Power Base | ○ | ○ | ✓ | ○ | ✓ | Industrial | ○ | ✓ |
| Vise 16"L x 12"H | ○ | ○ | ✓ | ○ | ✓ | ○ | ○ | ✓ |
| 65 Rotation, 90 Tilt | ○ | ○ | ✓ | ○ | ✓ | |||
| 360 Rotation, 35 Tilt | ✓ | |||||||
| 360 Rotation, 90 Tilt | ○ | ✓ | ||||||
Cylindrical | ○ | ○ | ✓ | ○ | ✓ | ○ | ○ | ✓ |
| Onsite Installation/Training | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Warranty - 2 year | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
✓ = Standard Feature
○ = Optional Feature
